PATENT (GRANTED)  -  TURBINE ENERGY DEVICE
 Proof of concept model
 en   fr   de   he
 dk   nl   es   pt
   Below videos compare between the method of the patent (left videos) to the conventional technology (right videos)
  An adapter of 9 Volts is powering the bottom motor in each video to demonstrate a turbine. The model has two settings that can be
  replaced with one simple change, in order to reduce as much as possible other variables that may affect the results. The generator is
  located inside according to the selected setting.
  The output power in Voltages (V) and Milliamperes (mA) from the generator (DC) is seen in each video on the left side of the device.

 Patent   EP 3123599 B1  ➜  Output power:  10.77 - 10.66  V  ,  91.5 - 90.7  mA

 Conventional technology  ➜  Output power:  9.06 - 9.01  V  ,  82.9 - 82.6  mA
Results: The patent method increases the output voltage by more than 16%, and the output power (with normalization to the
input power) by more than 20%, in comparison to the conventional technology.

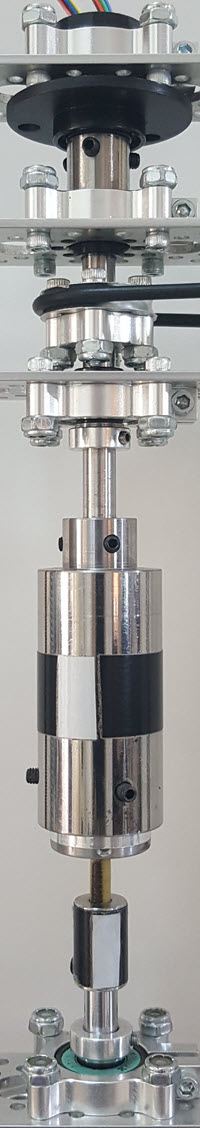

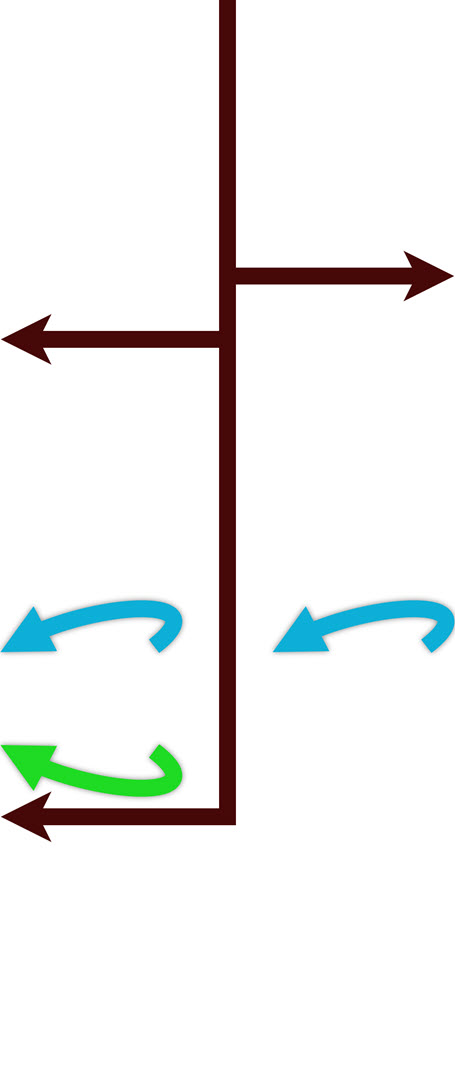

⇩   Stator / Rotor Relative Rotational Speed (RPM) Check   ⇩

 Patent   EP 3123599 B1  ➜  Relative speed:  809.3 + 3,020.1 =  3,829.4 RPM

 Conventional technology  ➜  Relative speed:  0 + 3,299.1 =  3,299.1 RPM
Results: The patent method increases the relative speed between the stator and rotor by more than 16% while at the same time
the speed of the fastest elements is actually decreased by more than 9%, in comparison to the conventional technology.

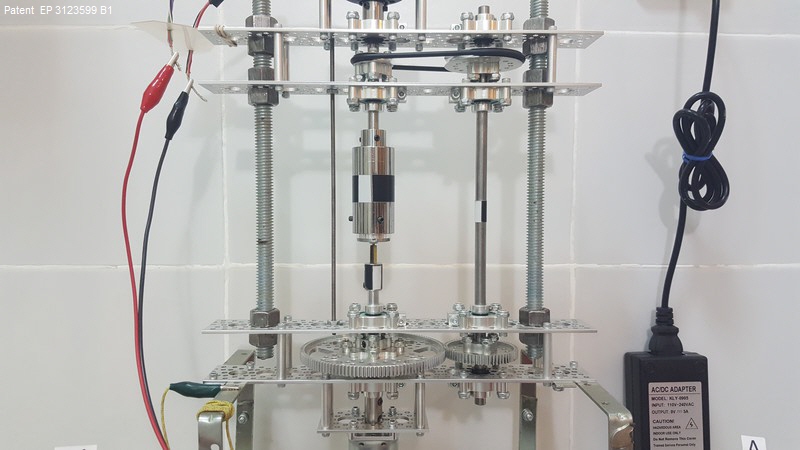

 ⇩  Pictures of the patent method  ⇩
Open picture in new tab
Open picture in new tab
 ⇩  Pictures of the conventional technology  ⇩
Open picture in new tab
Open picture in new tab

Additional information :
  ∎   Executive Review - about the patent and its advantages
  ∎ Mathematical calculations - comparing the patent to preexisting patents and technology
  ∎ Official granted documents of the Patent:
  EUROPE    Patent No.:    EP 3123599 B1
  USA    Patent No.:    US 11053922 B2
  BRAZIL    Patent No.:    BR 112016018700 B1
The patent is granted in 18 countries around the world, including the USA, Canada, Brazil,
United Kingdom, several countries in Europe, Russia, South Africa, India, Australia, and more.
  ∎
